Underwater Power ConnectorsUnderwater Power Connectors
Power series (HPBH/HPIL) offers solutions to accommodate the ever-growing power requirements of underwater system operators and industries. The connectors are available with 1,4 pins.
Application
- Underwater robotics such as Remotely Operated Vehicle, Autonomous Underwater Vehicle systems , Remotely operated towed vehicle (ROV's & ROTV's & AUV)
- Underwater systems and equipment, marine inspection, subsea sensors
- Oceanographic systems, hydrographic survey equipment and instrumentation solutions
- Offshore oil and gas,Sonar systems, renewable energy and subsea system
- Underwater camera, video, lighting and tracking systems
- Diving systems and equipment
Material Specifications
- Bulkhead Socket: Brass (C36000) or Stainless Steel 316L or Titanium
- Connector Body: Neoprene Rubber
- Contacts: Gold Plated Brass (H62)
- O-Rings: Nitrile
- Locking Sleeves: Stainless Steel or POM
- Cables: Default neoprene outer sheathed cable ( Polyurethane cable is available upon request)

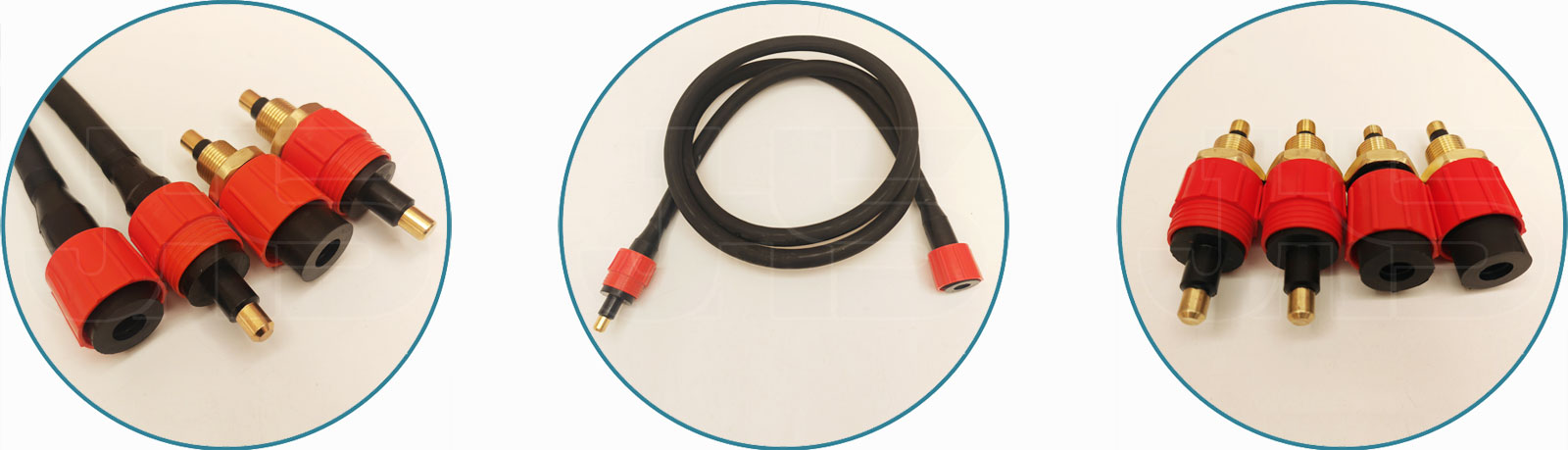

HPBH/HPIL-1
Connector Specifications
| Standard cable length is 0.3m/0.6m for HPBH/HPIL side | |||
| Contact | 1 | Current Rating | 250A/90A |
|---|---|---|---|
| Resistance | >200Mohm | Testing Voltage | 1000V/3000V option |
| Qualified Pressure | 80Mpa | Application Water Depth | 8000m |
| Mating | >500 times | Working Temperature | -40~60°C |

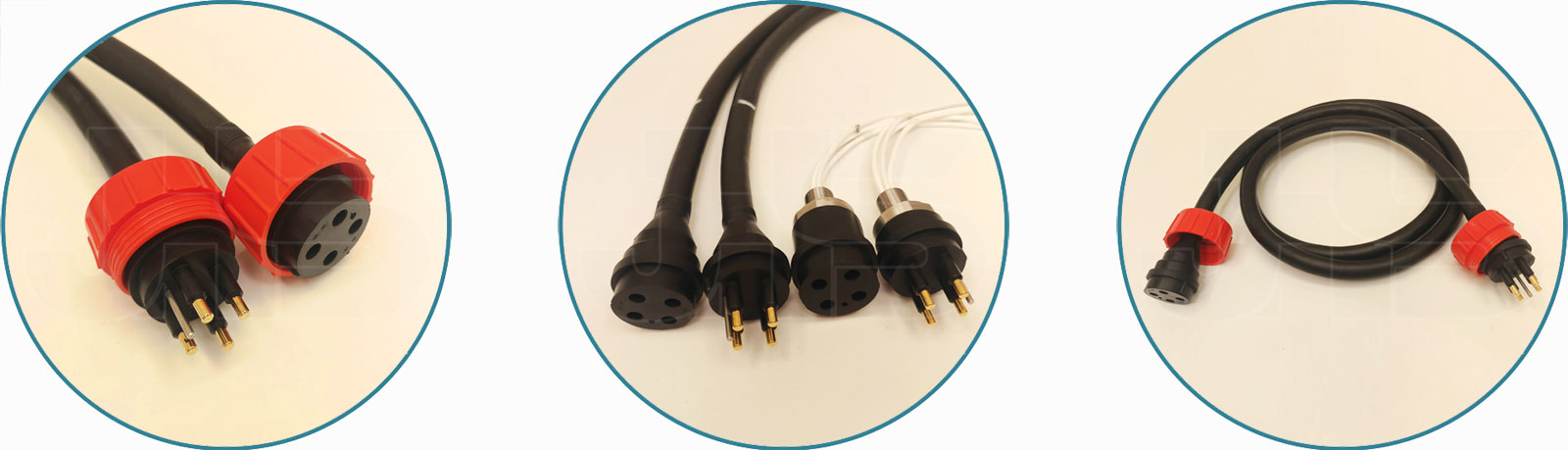

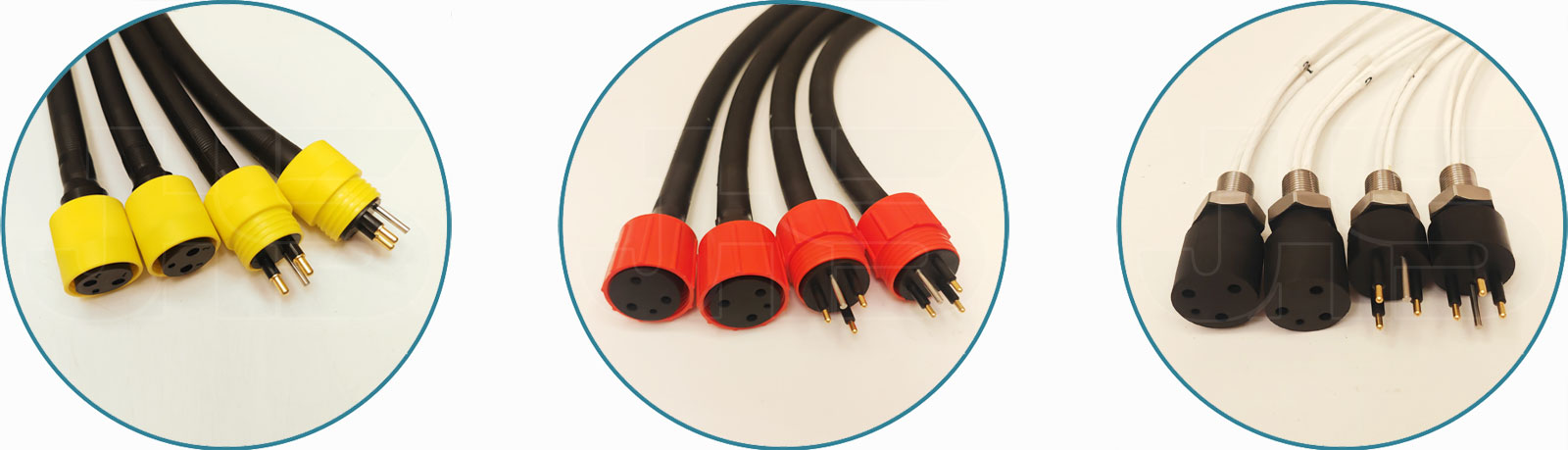

HPBH/HPIL-4
Connector Specifications
| Standard cable length is 0.3m/0.6m for HPBH/HPIL side | |||
| Contact | 4 | Testing Voltage | 600AC/DC |
|---|---|---|---|
| Resistance | >200Mohm | Application Water Depth | 8000m/14000m option |
| Qualified Pressure | 80Mpa/140Mpa | Working Temperature | -40~60°C |
| Current Rating(air) | 28A/pin,Max 112A | Current Rating(water) | 50A/pin Max 200A |
| Mating | >500 times | ||
