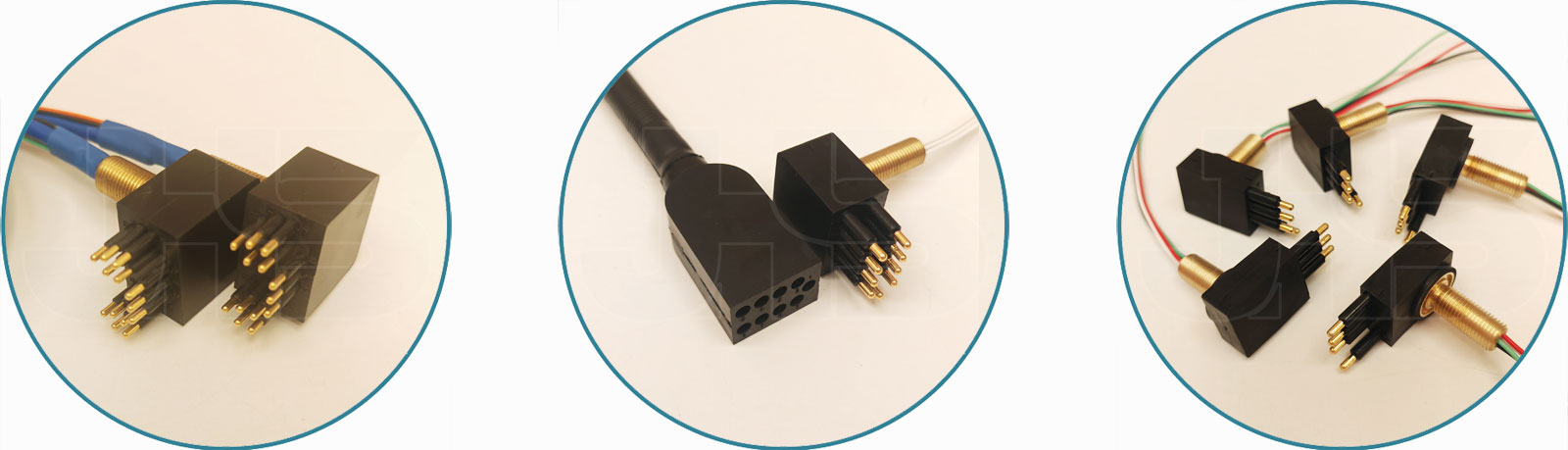

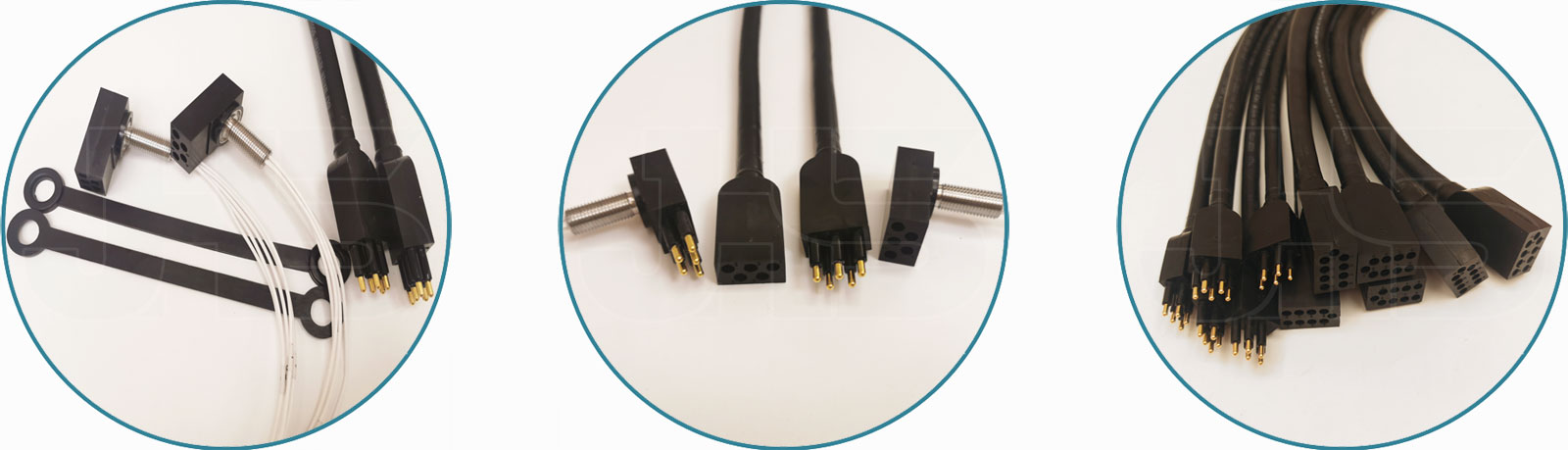

Underwater Low Profile And Micro Low Profile ConnectorsUnderwater Low Profile And Micro Low Profile Connectors
Low Profile and Micro Low Profile Series connectors (LPBH/LPIL or MCLPBH/MCLPIL) are designed for limited space with 2 to 9 contacts to solve more solution.
Application
- Underwater robotics such as Remotely Operated Vehicle, Autonomous Underwater Vehicle systems , Remotely operated towed vehicle (ROV's & ROTV's & AUV)
- Underwater systems and equipment, marine inspection, subsea sensors
- Oceanographic systems, hydrographic survey equipment and instrumentation solutions
- Offshore oil and gas,Sonar systems, renewable energy and subsea system
- Underwater camera, video, lighting and tracking systems
- Diving systems and equipment
Material Specifications
- Bulkhead Socket: Brass (C36000) or Stainless Steel 316L or Titanium or Anodised Aluminium
- Connector Body: Neoprene Rubber
- Contacts: Gold Plated Brass (H62)
- O-Rings: Nitrile
- Locking Sleeves: Stainless Steel or POM
- Cables: Default neoprene outer sheathed cable ( Polyurethane cable is available upon request)
LPBH/LPIL-3/4/5/7/9
Connector Specifications
| Standard cable length is 0.6m/0.3m for MCIL/MCBHRA side | |||
| Contact | 2/3/5/7/9 | Current Rating | 10A/pin |
|---|---|---|---|
| Resistance | >200Mohm | Testing Voltage | 600 AC/DC |
| Qualified Pressure | 80Mpa | Application Water Depth | 8000m |
| Mating | >500 times | Working Temperature | -40~60°C |
MCLPBH/MCILPIL-7/9
Connector Specifications
| Standard cable length is 0.6m/0.3m for MCIL/MCBHRA side | |||
| Contact | 3/7/9 | Current Rating | 5A/pin |
|---|---|---|---|
| Resistance | >200Mohm | Testing Voltage | 300 AC/DC |
| Qualified Pressure | 80Mpa | Application Water Depth | 8000m |
| Mating | >500 times | Working Temperature | -40~60°C |
