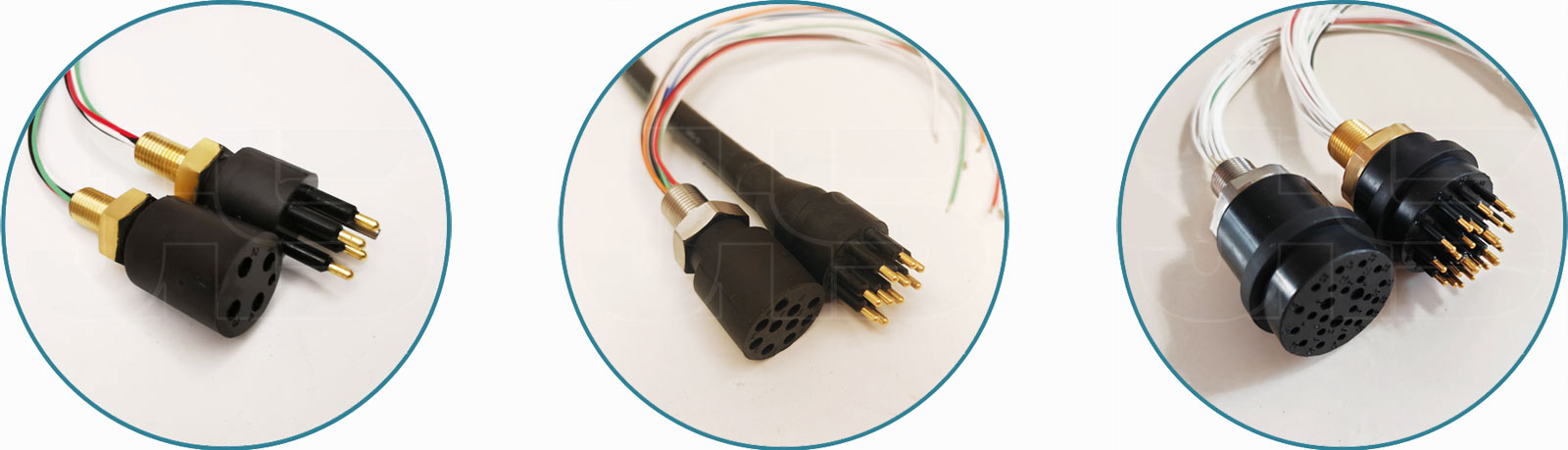

Underwater Circular ConnectorsUnderwater Circular Connectors


Circular connectors (BH/IL) are available in various standard size configurations with below mentioned contacts.

Application

  • Underwater robotics such as Remotely Operated Vehicle, Autonomous Underwater Vehicle systems , Remotely operated towed vehicle (ROV's & ROTV's & AUV)
  • Underwater systems and equipment, marine inspection, subsea sensors
  • Oceanographic systems, hydrographic survey equipment and instrumentation solutions
  • Offshore oil and gas,Sonar systems, renewable energy and subsea system
  • Underwater camera, video, lighting and tracking systems
  • Diving systems and equipment

Material Specifications

  • Bulkhead Socket: Brass (C36000) or Stainless Steel 316L or Titanium or Anodised Aluminium
  • Connector Body: Neoprene Rubber
  • Contacts: Gold Plated Brass (H62)
  • O-Rings: Nitrile
  • Locking Sleeves: Stainless Steel or POM
  • Cables: Default neoprene outer sheathed cable

BH/IL-2/3/4/5/6/8/10/12/16/25

Connector Specifications

Cable length can be customized, Standard length is 0.6m/0.3m for IL/BH side.
Contact 2/3/4/5/6/8/10/12/16/25 Current Rating 10A/pin
Resistance >200Mohm Testing Voltage 600 AC/DC
Qualified Pressure 80Mpa/140Mpa Application Water Depth 8000m/14000m Option
Mating >500 times Working Temperature -40~60°C
