Underwater Ethernet ConnectorsUnderwater Ethernet Connectors

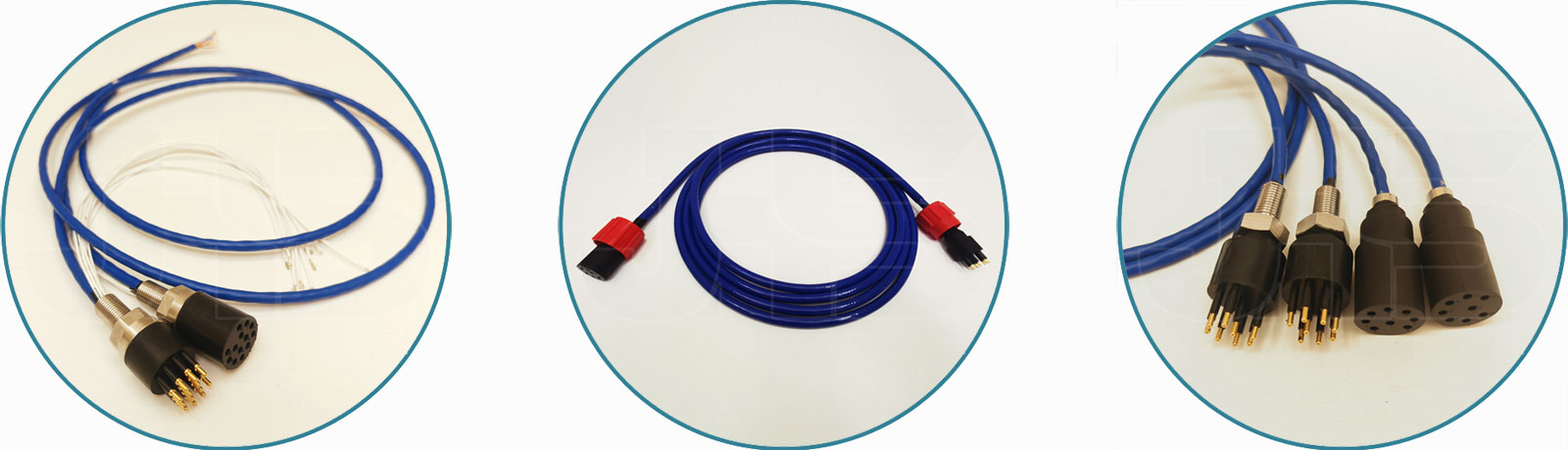

Ethernet series ( MCDBH/MCDIL, DBH/DIL) accommodate the demand for gigabit data speed, signal and power for increasingly capable and compact underwater systems. Ethernet connector are available with 8 and 13 pin to meet the demand.
Application
- Underwater robotics such as Remotely Operated Vehicle, Autonomous Underwater Vehicle systems , Remotely operated towed vehicle (ROV's & ROTV's & AUV)
- Underwater systems and equipment, marine inspection, subsea sensors
- Oceanographic systems, hydrographic survey equipment and instrumentation solutions
- Offshore oil and gas,Sonar systems, renewable energy and subsea system
- Underwater camera, video, lighting and tracking systems
- Diving systems and equipment
Material Specifications
- Bulkhead Socket: Brass (C36000) or Stainless Steel 316L or Titanium or Anodised Aluminium
- Connector Body: Neoprene Rubber
- Contacts: Gold Plated Brass (H62)
- O-Rings: Nitrile
- Locking Sleeves: Stainless Steel or POM
- Cables: Default Polyurethane cable
MCDBH/MCDIL-8
Connector Specifications
| Standard cable length is 1m for MCDBH/MCDIL side | |||
| Contact | 8 | Current Rating | 1Gbit/s |
|---|---|---|---|
| Resistance | >200Mohm | Testing Voltage | 300v AC/DC |
| Qualified Pressure | 60Mpa | Application Water Depth | 6000m |
| Mating | >500 times | Working Temperature | -40~60°C |
DBH/DIL-8
Connector Specifications
| Standard cable length is 1m for DBH/DIL side | |||
| Contact | 8 | Current Rating | 1Gbit/s |
|---|---|---|---|
| Resistance | >200Mohm | Testing Voltage | 300v AC/DC |
| Qualified Pressure | 60Mpa | Application Water Depth | 6000m |
| Mating | >500 times | Working Temperature | -40~60°C |

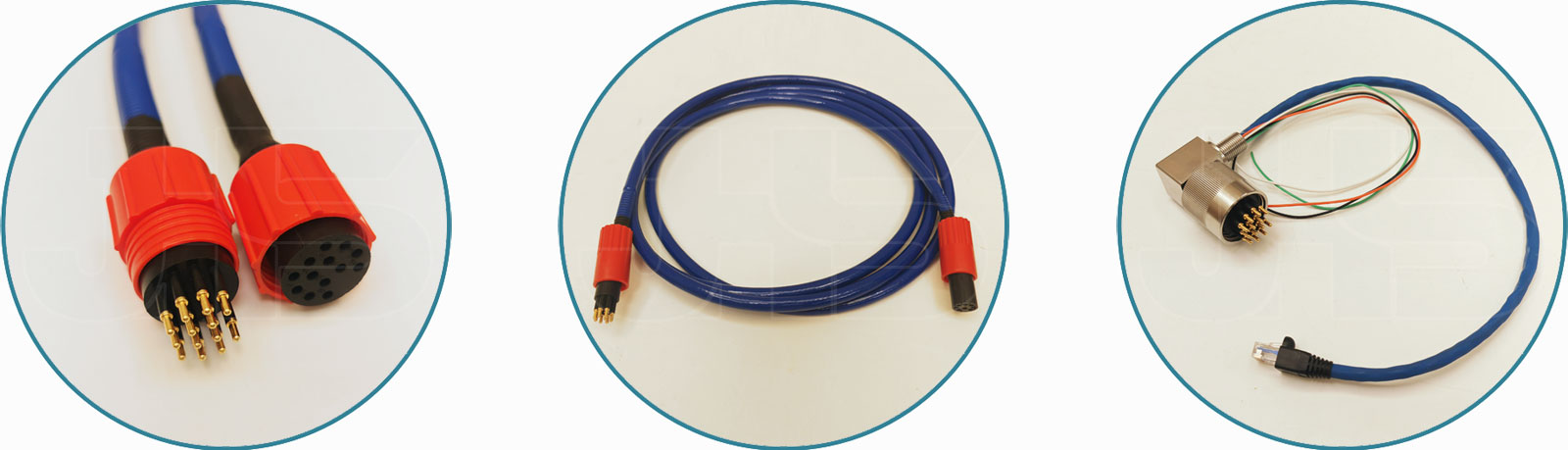

DBH/DIL-13
Connector Specifications
| Standard cable length is 1m for DBH/DIL side | |||
| Contact | 13 | Current Rating | 4A |
|---|---|---|---|
| Data wire Rating | 250v AC/DC | Data Rate | 1Gbit/s |
| Resistance | >200Mohm | Testing Voltage | 600v AC/DC |
| Qualified Pressure | 60Mpa | Application Water Depth | 6000m |
| Mating | >500 times | Working Temperature | -40~60°C |
