Underwater Metal Shell ConnectorsUnderwater Metal Shell Connectors

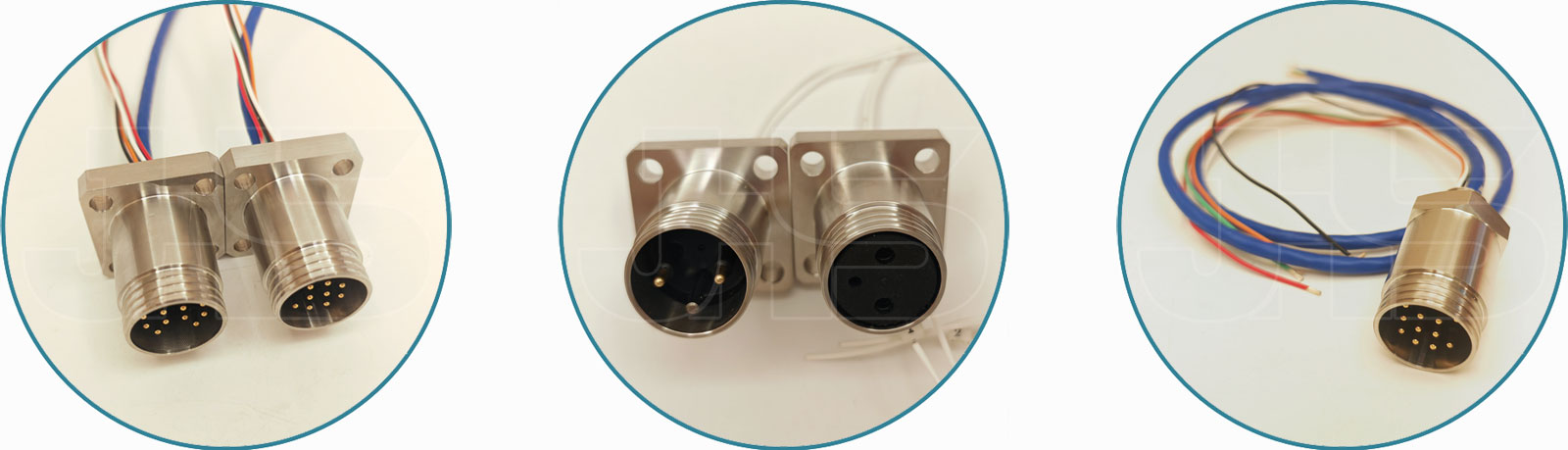

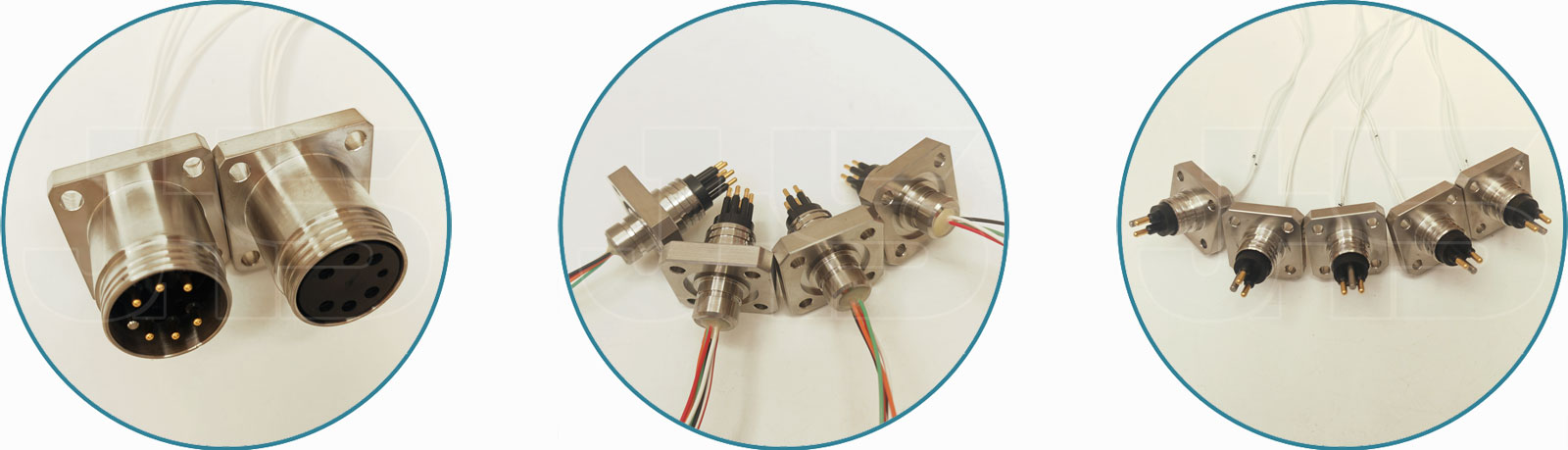

Metal Shell series is an alternative to Circular series bulkhead connectors where an even more rugged, resilient and protected underwater connectivity solution is required. Flange mountable and bulkhead (male and female) connectors are available as standard equipment and connector configuration ranges from 2 to 8 contacts.
Application
- Underwater robotics such as Remotely Operated Vehicle, Autonomous Underwater Vehicle systems , Remotely operated towed vehicle (ROV's & ROTV's & AUV)
- Underwater systems and equipment, marine inspection, subsea sensors
- Oceanographic systems, hydrographic survey equipment and instrumentation solutions
- Offshore oil and gas,Sonar systems, renewable energy and subsea system
- Underwater camera, video, lighting and tracking systems
- Diving systems and equipment
Material Specifications
- Bulkhead Socket: Brass (C36000) or Stainless Steel 316L or Titanium or Anodised Aluminium
- Connector Body: Neoprene Rubber
- Contacts: Gold Plated Brass (H62)
- O-Rings: Nitrile
- Locking Sleeves: Stainless Steel or POM
- Cables: Default neoprene outer sheathed cable ( Polyurethane cable is available upon request)
FCR/BCR1500-2/3/4
Connector Specifications
| Standard cable length is 0.3m for FCR/BCR1500 | |||
| Contact | 2/3/4 | Current Rating | 10A/pin |
|---|---|---|---|
| Resistance | >200Mohm | Testing Voltage | 300 AC/DC |
| Qualified Pressure | 80Mpa | Application Water Depth | 8000m |
| Mating | >500 times | Working Temperature | -40~60°C |
FCR/BCR1500-5/6/8
Connector Specifications
| Standard cable length is 0.3m for FCR/BCR1500 | |||
| Contact | 5/6/8 | Current Rating | 5A/pin |
|---|---|---|---|
| Resistance | >200Mohm | Testing Voltage | 300 AC/DC |
| Qualified Pressure | 80Mpa | Application Water Depth | 8000m |
| Mating | >500 times | Working Temperature | -40~60°C |
PRODUCT
-
Subsea Circular Connectors
Circular connectors (BH/IL) are available in various standard size configurations with 1 to 21 contacts.
-
Subsea Micro Circular Connectors
Micro Circular connectors (MCBH/MCIL) are available in various size configurations with 1 to 16 contacts to suit more instruments and equipment and systems. Comparing with Circular series, they are more flexible and cost-efficient.
-
Subsea Micro Circular Right Angle Connectors
Micro Circular Right Angle connectors (MCBHRA/MCILRA) are available with 2 to 8 contacts to suit more instruments and equipment which are more flexible
-
Subsea MIcro Circular Double O Ring Connectors
Micro Circular connectors (MCBH/MCIL) are available in various size configurations with 1 to 16 contacts to suit more instruments and equipment and systems. Comparing with Circular series, they are more flexible and cost-efficient.
-
Subsea Low Profile And Micro Low Profile Connectors
Low Profile and Micro Low Profile Series connectors (LPBH/LPIL or MCLPBH/MCLPIL) are designed for limited space with 2 to 9 contacts to solve more solution.
-
Subsea Ethernet Connectors
Ethernet series (DBH/DIL) accommodate the demand for gigabit data speed, signal and power for increasingly capable and compact underwater systems. Ethernet connector are available with 8,10,12 and 13 pin to meet the demand.
-
Subsea Power Connectors
Power series (HPBH/HPIL) offers solutions to accommodate the ever-growing power requirements of underwater system operators and industries. The connectors are available with 2,3,4,6 pins.
-
Subsea Over Molded Connectors
Over mold series are available for full model of Micro Circular series 2/3/4/5/6/8/10/12/16/21 pin, Circular series 2/3/4/5/6/8/10/12/16 pin, Ethernet 8 pin and 13 pin, full model of Low Profile 2/3/4/5/7/9 pin and Micro Low Profile 3/7/9 pin.
-
Subsea Dummy Plug Connectors
Full range of related dummy plugs are available for all the models.
-
Subsea Marsh Marine Connectors
RMG series is designed to connect underwater systems and Instrumentation. It is available for 2,3,4 pins.
-
Subsea Connector Other Customization (OEM)
Besides standard connectors, customization service is available. Please consult us with your detail requirement.
-
Subsea Connector Accessories
Full range of accessories are available
